完全准确的12/14/16位双VOUT nanoDAC SPI接口的4.5V至5.5V在TSSOP封装数据表ad5025/ad5045/ad5065数据表

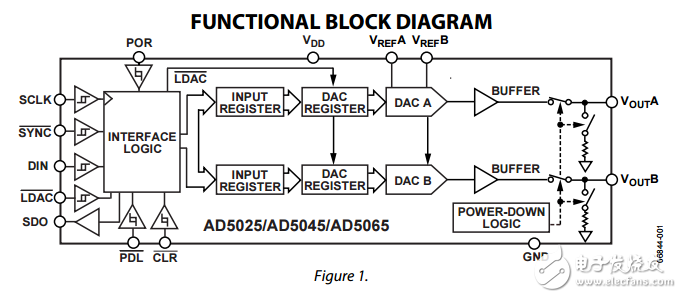

　　The AD5025/AD5045/AD5065 are low power， dual 12-/14-/16-bit buffered voltage output nanoDAC® DACs offering relative accuracy specifications of ±1 LSB INL with individual reference pins， and can operate from a single 4.5 V to 5.5 V supply. The AD5025/ AD5045/AD5065 also offer a differential accuracy specification of ±1 LSB. The parts use a versatile 3-wire， low power Schmitt trigger serial interface that operates at clock rates up to 50 MHz and is compatible with standard SPI®， QSPI™， MICROWIRE™， and DSP interface standards. The reference for the AD5025/ AD5045/AD5065 are supplied from an external pin and a reference buffer is provided on chip. The AD5025/AD5045/AD5065 incorporate a power-on reset circuit that ensures the DAC output powers up zero scale or midscale and remains there until a valid write takes place to the device. The AD5025/AD5045/AD5065 contain a power-down feature that reduces the current consumption of the device to typically 400 nA at 5 V and provides software selectable output loads while in power-down mode. The parts are put into power-down mode over the serial interface. Total unadjusted error for the parts is 《2.5 mV. The parts exhibit very low glitch on power-up. The outputs of all DACs can be updated simultaneously using the LDAC function， with the added functionality of user-selectable DAC channels to simultaneously update. There is also an asynchronous CLR that clears all DACs to a software-selectable code—0 V， midscale， or full scale. The parts also feature a power-down lockout pin， PDL， which can be used to prevent the DAC from entering power-down under any circumstances over the serial interface.
