Diodes Incorporated 集成电路（IC） AP7313-30SAG-7

　　Diodes Incorporated 集成电路（IC） AP7313-30SAG-7

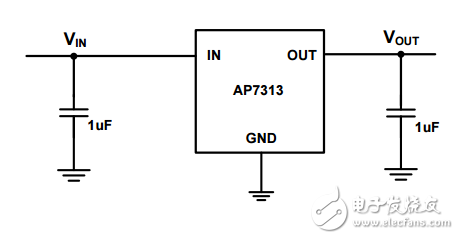

　　The AP7313 is a 150mA， fixed output voltage， low dropout linear regulator. The device included pass element， error amplifier， band-gap， current limit and thermal shutdown circuitry. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications， for example， battery powered devices. The typical quiescent current is approximately 65μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7313 is available in SOT23 package with different pin-outs.

　　150mA Low Dropout Regulator in 3-pin package • Very low IQ over full load： 65µA • Wide input voltage range： 2V to 6V • Fixed output options： 1.0V to 3.3V • PSRR： 65dB at 100Hz • Fast start-up time： 80µs • Stable with low ESR， 1µF ceramic output capacitor • Excellent Load/Line Transient Response • Low dropout： 150mV typical at 150mA • Current limit protection • Short circuit protection • Thermal shutdown protection • Ambient temperature range： -40ºC to 85°C • SOT23 and SOT23R： Available in “Green” Molding Compound （No Br， Sb） • Lead Free Finish/RoHS Compliant （Note 1）
