HMC270A GaAs MMIC SPDT Switch Non-Reflective DC -8 GHz

优势和特点

• Broadband performance: DC - 8 GHz
• Very high isolation: 45 dB @ 6 GHz

• Non-reflective design

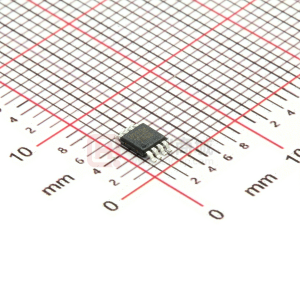

• Low cost MSOP-8 package: 14.8 mm²

产品详情

The HMC270AMS8GE are broad-band non-reflectiveGaAs SPDT switches in 8 lead MSOP grounded basesurface mount plastic packages. Covering DC to 8GHz, the switch offers excellent isolation from 70 to35 dB. The negative control voltage of -5 volts allowsoperation down to DC. If positive control is requiredalong with high isolation, see the DC to 3.5 GHzHMC284AMS8GE non-reflective SPDT.

Applications

The HMC270AMS8GE is ideal for DC - 8.0 GHz applications:

• CATV
• MMDS and wireless LAN
• Wireless local loop

产品详情

The HMC270AMS8GE are broad-band non-reflectiveGaAs SPDT switches in 8 lead MSOP grounded basesurface mount plastic packages. Covering DC to 8GHz, the switch offers excellent isolation from 70 to35 dB. The negative control voltage of -5 volts allowsoperation down to DC. If positive control is requiredalong with high isolation, see the DC to 3.5 GHzHMC284AMS8GE non-reflective SPDT.

Applications

The HMC270AMS8GE is ideal for DC - 8.0 GHz applications:

• CATV
• MMDS and wireless LAN
• Wireless local loop

方框图
