TPS61099x器件是一款具有1μA超低静态电流的同步升压转换器。该器件专为由碱性电池，镍氢电电池，锂锰电池或锂离子充电电池供电的产品而设计，能够在轻载条件下高效运行，这对延长电池使用寿命至关重要。
TPS61099x升压转换器采用迟滞控制拓扑，可器件在轻载条件下仅消耗1μA静态电流;当负载为10μA，固定输出电压版本时，可实现高达75％的效率。该器件在3.3V至5V转换过程中的输出电流高达300mA，在200mA负载条件下可实现高达93％的效率。
TPS61099x还可为不同应用提供降压模式和直通模式。即使输入电压高于输出电压，输出电压仍可调节为目标值。在直通模式下，输出电压随着输入电压发生变化。当V IN ＆gt; V OUT + 0.5V时，TPS61099x退出降压模式并转入直通模式。
TPS61099x在禁用状态下能够将负载与输入电源断开，真正实现关断，从而降低电流消耗。

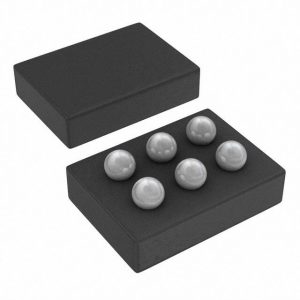

TPS61099x具有可调输出电压版本和固定输出电压版本。该器件采用6焊球1.23mm x 0.88mm WCSP封装和6引脚2mm x 2mm WSON封装。< /p>
所有商标均为其各自所有者的财产。
| Vin (Min) (V) |
| Vin (Max) (V) |
| Vout (Min) (V) |
| Vout (Max) (V) |
| Switch Current Limit (Typ) (A) |
| Regulated Outputs (#) |
| Switching Frequency (Min) (kHz) |
| Switching Frequency (Max) (kHz) |
| Iq (Typ) (mA) |
| Features |
| Duty Cycle (Max) (%) |
| Operating Temperature Range (C) |
| Rating |
| Package Group |
| TPS61099 | TPS610992 | TPS610993 | TPS610994 | TPS610995 | TPS610996 | TPS610997 | TLV61220 | TLV61224 | TLV61225 | TPS61097A-33 | TPS61098 | TPS610981 | TPS610982 | TPS610985 | TPS610986 | TPS610987 | TPS61220 | TPS61221 | TPS61222 | TPS61291 | TPS61322 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.9 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.9 | 0.85 |
| 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 3 | 3.3 | 5.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 5.5 | 5.5 | 5.5 | 5 | 5.5 |
| 1.8 | 2.5 | 3 | 3.3 | 3.6 | 4.5 | 5 | 1.8 | 3 | 3.3 | 3.3 | 4.171 | 3.201 | 3.201 | 2.91 | 3.201 | 4.171 | 1.8 | 3.3 | 5 | 2.5 | 2.2 |
| 5.5 | 2.5 | 3 | 3.3 | 3.6 | 4.5 | 5 | 5.5 | 3 | 3.3 | 3.3 | 4.429 | 3.399 | 3.399 | 3.09 | 3.399 | 4.429 | 5.5 | 3.3 | 5 | 3.3 | 2.2 |
| 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.4 | 0.4 | 0.4 | 1 | 0.75 |
| 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 |
| 500 | 500 | 500 | 500 | 500 | 500 | 500 | |||||||||||||||
| 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | ||||||||||||||
| 0.0008 | 0.001 | 0.0008 | 0.0008 | 0.001 | 0.001 | 0.0008 | 0.005 | 0.005 | 0.005 | 0.007 | 0.0003 | 0.0003 | 0.0003 | 0.0003 | 0.0003 | 0.0003 | 0.005 | 0.005 | 0.005 | 0.005 | 0.006 |
| Synchronous Rectification | Synchronous Rectification | Enable Light Load Efficiency Load Disconnect Synchronous Rectification | Synchronous Rectification | Synchronous Rectification | Synchronous Rectification | Synchronous Rectification | Synchronous Rectification | Synchronous Rectification | Synchronous Rectification | Enable | Light Load Efficiency Synchronous Rectification | Light Load Efficiency Synchronous Rectification | Light Load Efficiency Synchronous Rectification | Light Load Efficiency Synchronous Rectification | Light Load Efficiency Synchronous Rectification | Light Load Efficiency Synchronous Rectification | Synchronous Rectification | Synchronous Rectification | Synchronous Rectification | Enable Light Load Efficiency Synchronous Rectification | Light Load Efficiency Synchronous Rectification |
| 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 100 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 125 -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog |
| DSBGA | DSBGA | DSBGA | DSBGA | DSBGA WSON | DSBGA | DSBGA | SOT-23 | SC70 | SC70 | SOT-23 | WSON | WSON | WSON | WSON | WSON | WSON | SC70 | SC70 | SC70 | WSON | SOT-23 |
