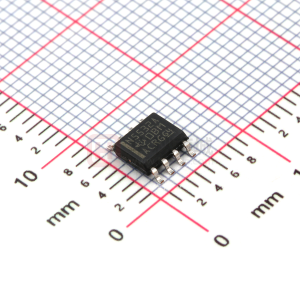

NE5532，NE5532A，SA5532和SA5532A器件是高性能运算放大器，具有出色的直流和交流特性。它们具有极低噪声，高输出驱动能力，高单位增益和最大输出摆幅带宽，低失真，高压摆率，输入保护二极管和输出短路保护。这些运算放大器在内部进行补偿，以实现单位增益操作。这些器件规定了等效输入噪声电压的最大限值。
| Number of Channels (#) |
| Total Supply Voltage (Min) (+5V=5, +/-5V=10) |
| Total Supply Voltage (Max) (+5V=5, +/-5V=10) |
| GBW (Typ) (MHz) |
| Slew Rate (Typ) (V/us) |
| Rail-to-Rail |
| Vos (Offset Voltage @ 25C) (Max) (mV) |
| Iq per channel (Typ) (mA) |
| Vn at 1kHz (Typ) (nV/rtHz) |
| Features |
| THD + N @ 1 kHz (Typ) (%) |
| Rating |
| Operating Temperature Range (C) |
| Package Group |
| Output Current (Typ) (mA) |
| Package Size: mm2:W x L (PKG) |
| Architecture |
| CMRR (Typ) (dB) |
| Input Bias Current (Max) (pA) |
| NE5532A | NE5532 | NE5534 | NE5534A | SA5532 |
|---|---|---|---|---|
| 2 | 2 | 1 | 1 | 2 |
| 10 | 10 | 10 | 10 | 10 |
| 30 | 30 | 30 | 30 | 30 |
| 10 | 10 | 10 | 10 | 10 |
| 9 | 9 | 13 | 13 | 9 |
| No | No | No | No | No |
| 4 | 4 | 4 | 4 | 4 |
| 4 | 4 | 4 | 4 | 4 |
| 5 | 5 | 4 | 3.5 | 5 |
| N/A | N/A | Decompensated | Decompensated | N/A |
| 0.002 | 0.002 | 0.002 | 0.002 | |
| Catalog | Catalog | Catalog | Catalog | Catalog |
| 0 to 70 | 0 to 70 | 0 to 70 | 0 to 70 | -40 to 85 |
| PDIP SO SOIC | PDIP SO SOIC | PDIP SOIC | PDIP SOIC | PDIP SOIC |
| 38 | 38 | 38 | 38 | 38 |
| See datasheet (PDIP) 8SO: 48 mm2: 7.8 x 6.2(SO) 8SOIC: 29 mm2: 6 x 4.9(SOIC) | See datasheet (PDIP) 8SO: 48 mm2: 7.8 x 6.2(SO) 8SOIC: 29 mm2: 6 x 4.9(SOIC) | See datasheet (PDIP) 8SOIC: 29 mm2: 6 x 4.9(SOIC) | See datasheet (PDIP) 8SOIC: 29 mm2: 6 x 4.9(SOIC) | See datasheet (PDIP) 8SOIC: 29 mm2: 6 x 4.9(SOIC) |
| Bipolar | Bipolar | Bipolar | Bipolar | Bipolar |
| 100 | 100 | 100 | 100 | 100 |
| 800000 | 800000 | 1500000 | 1500000 | 800000 |
