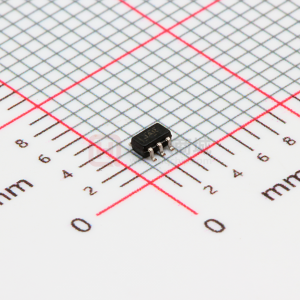

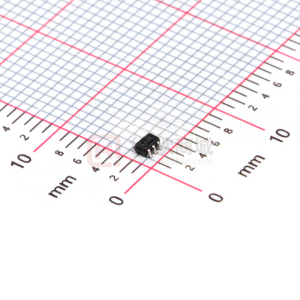

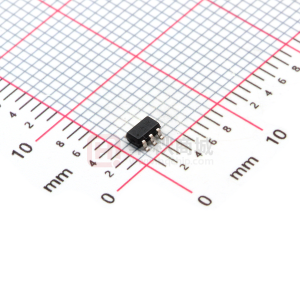

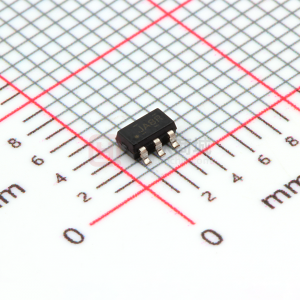

TS5A3159器件是单刀双掷（SPDT）模拟开关，设计工作电压为1.65 V至5.5 V.该器件提供低导通电阻和出色的导通状态电阻匹配，具有先开后合功能，可防止信号从一个通道传输到另一个通道时发生信号失真。该器件具有出色的总谐波失真（THD）性能，功耗极低。这些功能使该器件适用于便携式音频应用。
| Configuration |
| Number of Channels (#) |
| Power Supply Type |
| Vss (Min) (V) |
| Vss (Max) (V) |
| Vdd (Min) (V) |
| Vdd (Max) (V) |
| Ron (Typ) (Ohms) |
| Bandwidth (MHz) |
| Rating |
| Operating Temperature Range (C) |
| Package Size: mm2:W x L (PKG) |
| Package Group |
| Supply Range (Max) |
| Ron (Max) (Ohms) |
| Input/Output Continuous Current (Max) (mA) |
| Supply Current (Typ) (uA) |
| Supply Current (Max) (uA) |
| Features |
| OFF-state leakage current (Max) (µA) |
| ON-state leakage current (Max) (µA) |
| Input/Output ON-state Capacitance (Typ) (pF) |
| Input/Output OFF-state Capacitance (Typ) (pF) |
| ESD Charged Device Model (kV) |
| ESD HBM (kV) |
| VIL (Max) (V) |
| VIH (Min) (V) |
| TS5A3159 | TS5A3159-EP | TS5A3159-Q1 | TS5A3159A | TS5A3160 | TS5A4624 |
|---|---|---|---|---|---|
| 2:1 SPDT | 2:1 SPDT | 2:1 SPDT | 2:1 SPDT | 2:1 SPDT | 2:1 SPDT |
| 1 | 1 | 1 | 1 | 1 | 1 |
| Single | Single | Single | Single | Single | |
| N/A | N/A | N/A | N/A | N/A | |
| N/A | N/A | N/A | N/A | N/A | |
| 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | |
| 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | |
| 0.75 | 0.75 | 0.7 | 0.7 | 0.7 | 0.5 |
| 100 | 100 | 100 | 105 | 90 | |
| Catalog | HiRel Enhanced Product | Automotive | Catalog | Catalog | Catalog |
| -40 to 85 | -55 to 125 | -40 to 85 | -40 to 85 | -40 to 85 | |
| 6SC70: 4 mm2: 2.1 x 2(SC70) 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | See datasheet (DSBGA) 6SC70: 4 mm2: 2.1 x 2(SC70) 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 6SC70: 4 mm2: 2.1 x 2(SC70) 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 6SC70: 4 mm2: 2.1 x 2(SC70) |
| SC70 SOT-23 | SOT-23 | SOT-23 | DSBGA SC70 SOT-23 | SC70 SOT-23 | SC70 |
| 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | |
| 3.2 | 1.3 | 3.5 | 3.5 | 3.5 | 3.3 |
| 200 | 200 | 200 | 200 | 200 | |
| 0.01 | 0.05 | 0.001 | 0.01 | ||
| 0.1 | 0.5 | 0.5 | 0.5 | 1.2 | |
| Break-before-make | Break-before-make | Break-before-make | Powered off protection Break-before-make | Powered off protection Make-before-break | Powered off protection Break-before-make |
| 0.02 | 0.15 | 0.1 | 0.1 | 0.1 | |
| 0.04 | 0.15 | 0.1 | 0.1 | 0.1 | |
| 84 | 84 | 55 | 55 | 55 | |
| 23 | 23 | 18 | 18 | 18 | |
| 1 | 0.5 | 1 | 1 | 1 | |
| 2 | 2 | 2 | 2 | 2 | |
| 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
