RT9603应用电路

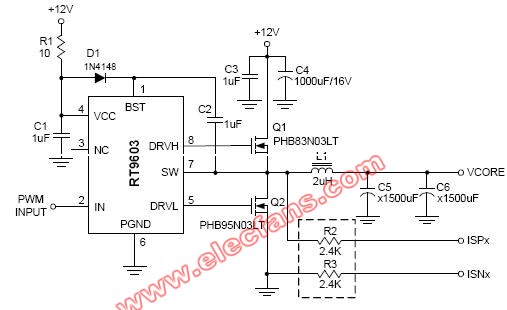

RT9603应用电路:RT9603 Typical Application Circuit

Note: The traces that run from the controller ISPx and ISNx pins, should be run together next to each other and Kelvin connected
to the Q2. Place both R2 and R3 as close to the PWM Controller as possible.

阅读全文
