MAX19994/MAX19994A应用电路

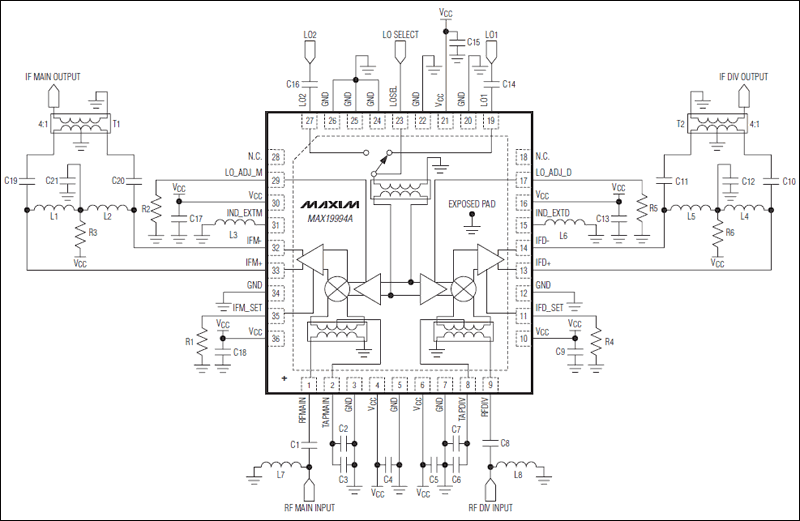

MAX19994/MAX19994A典型应用电路

应用/使用

cdma2000®基站
固定宽带无线接入
GSM/EDGE基站
军用系统
个人移动无线装置

TD-SCDMA基站
WCDMA/LTE基站
无线本地环路

The MAX19994A dual-channel downconverter is designed to provide 8.4dB of conversion gain, +25dBm input IP3, +14dBm 1dB input compression point, and a noise figure of 9.8dB for 1200MHz to 2000MHz diversity receiver applications. With an optimized LO frequency range of 1450MHz to 2050MHz, this mixer supports both high- and low-side LO injection architectures for the 1200MHz to 1700MHz and 1700MHz to 2000MHz RF bands, respectively.

In addition to offering excellent linearity and noise performance, the device also yields a high level of component integration. This device includes two double-balanced passive mixer cores, two LO buffers, a dual-input LO selectable switch, and a pair of differential IF output amplifiers. Integrated on-chip baluns allow for single-ended RF and LO inputs. The MAX19994A requires a nominal LO drive of 0dBm and a typical supply current of 330mA at V_CC = 5.0V, or 264mA at V_CC = 3.3V.

The MAX19994A is pin compatible with the MAX9985/MAX9995/MAX19985A/MAX19993/MAX19995/MAX19995A series of 700MHz to 2500MHz mixers and pin similar with the MAX19997A/MAX19999 series of 1850MHz to 4000MHz mixers, making this entire family of downconverters ideal for applications where a common PCB layout is used across multiple frequency bands.

The device is available in a 6mm x 6mm, 36-pin thin QFN package with an exposed pad. Electrical performance is guaranteed over the extended temperature range, from T_C = -40°C to +85°C.
