ADI公司的AD5770R是六路14位分辨率低噪音可编电流输出的数模转换器(DAC)光学控制应用器件,采用1.25V片上基准电压,2.5 kΩ精密电阻作为基准电流产生,芯片温度,输出监测功能,故障告警和重置功能.AD5770R包含5个14位分辨率电流源DAC通路和一个14位分辨率电流源和沉的DAC通路:通路0可配置成多达60mA的沉和多达300mA的源,而通路1到5有多个可编输出电流源范围由寄存器存储来定;每个DAC工作在0.8V到AVDD -0.4V电源轨内,以优化电源效率和热消耗.AD5770R工作电压从2.9V到5.5V AVDD电源,工作温度−40℃到+105℃,具有SPI接口,主要工作在光学控制,LED驱动器可编电流源和电流模式偏置。本文介绍了AD5770R主要特性,功能框图以及评估板EVAL-AD5770RSDZ主要特性,加电图和电路图以及材料清单。
The AD5770R is a 6-channel, 14-bit resolution, low noise, programmable current output, digital-to-analog converter (DAC) for photonics control applications. The device incorporates a 1.25 V, on-chip voltage reference, a 2.5 kΩ precision resistor for reference current generation, die temperature, output monitoring functions, fault alarm, and reset functions.
The AD5770R contains five 14-bit resolution current sourcing DAC channels and one 14-bit resolution current sourcing and sinking DAC channel.
Channel 0 can be configured to sink up to 60 mA and source up to 300 mA. Channel 1 to Channel 5 have multiple programmable output current sourcing ranges set by register access.
Each DAC operates with a wide power supply rail from 0.8 V to AVDD − 0.4 V for optimizing power efficiency and thermal power dissipation.
The AD5770R operates from a 2.9 V to 5.5 V AVDD supply and is specified over the −40℃ to +105℃ temperature range.
AD5770R主要特性:
6-channel, current output DAC
14-bit resolution
Programmable output current ranges
Channel 0: 0 mA to 300 mA, −60 mA to +300 mA, −60 mA to 0 mA
Channel 1: 0 mA to 140 mA, 0 mA to 250 mA
Channel 2: 0 mA to 55 mA, 0 mA to 150 mA
Channel 3, Channel 4, Channel 5: 0 mA to 45 mA, 0 mA to 100 mA
All current sourcing output ranges scale back by up to 0.5×
1.25 V, on-chip voltage reference
Integrated precision reference resistor
SPI interface
Reset function
Output current monitor
Compliance voltage monitor
Die temperature monitor
Integrated thermal shutdown
49-ball,4 mm × 4 mm WLCSP package
Operating temperature: −40℃ to +105℃
AD5770R应用:
Photonics control
LED driver programmable current source
Current mode biasing
图1.AD5770R功能框图
评估板EVAL-AD5770RSDZ
The EVAL-AD5770RSDZ is a fully featured evaluation board that is designed to help the user evaluate the AD5770R 6-channel, 14-bit, current output digital-to-analog converter (DAC)。
The EVAL-AD5770RSDZ evaluation board is controlled by the following two methods: the on-board P11 connector and the EVAL-SDP-CB1Z (Connector P10)。 The system development (SDP-B) board uses the AD5770R evaluation software to control the EVAL-AD5770RSDZ evaluation board via a Windows® PC USB port.
The EVAL-AD5770RSDZ board contains a power solution that uses the ADP5073 switching regulator to generate −2 V from a +3.3 V supply and the ADP1741 linear regulator to generate +2 V from a +3.3 V supply. Alternatively, the AD5770R also uses a linear power supply connected through the nine on-board connectors (P0 to P8)。 The AD5770R incorporates an internal 1.25 V precision reference. The EVAL-AD5770RSDZ board contains an additional 1.25, V 0.5 ppm/°C voltage reference.
The AD5770R evaluation software provides an intuitive graphic user interface (GUI) that configures and controls the AD5770R over the serial peripheral interface (SPI)。
The AD5770R is a 6-channel, 14-bit resolution, low noise, programmable current output DAC for photonics control applications. The output current ranges are software selectable, and channels are routed to the MUX_OUT pin for external monitoring.
See the AD5770R data sheet for full details and consult the AD5770R data sheet in conjunction with this user guide when using the EVAL-AD5770RSDZ board.
评估板EVAL-AD5770RSDZ主要特性:
Fully featured evaluation board for the AD5770R
PC control in conjunction with Analog Devices® Inc., EVAL-SDP-CB1Z system development platform
PC software for control
图2.评估板EVAL-AD5770RSDZ外形图
图3.评估板EVAL-AD5770RSDZ加电图
图4.评估板EVAL-AD5770RSDZ电路图-主器件和PMOD连接(1)
图5.评估板EVAL-AD5770RSDZ电路图-主器件和PMOD连接(2)
图6.评估板EVAL-AD5770RSDZ电路图-SDP接口连接器

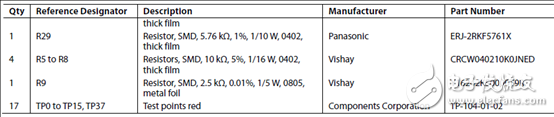

评估板EVAL-AD5770RSDZ材料清单:
详情请见:
https://www.analog.com/media/en/technical-documentation/data-sheets/AD5770R.pdf
和https://www.analog.com/media/en/technical-documentation/user-guides/EVAL-AD5770RSDZ-UG-1267.pdf
AD5770R.pdf
EVAL-AD5770RSDZ-UG-1267.pdf
-
