Maxim公司的MAX22191是IEC 61131-2兼容的工业数字输入(DI),能把24V数字工业输入转换成2.4mA电流,用来驱动光隔离器。电压阈值和电流值和Type 1和Type 3输入,采用额外外接电阻还和48V输入兼容,工作温度-40℃ - +125℃,主要用在过程自动化,工业自动化,马达控制,单个隔离输入以及电流源输入。本文介绍了MAX22191主要优势和特性,框图和应用框图,以及评估板MAX22191PMB# EVK主要特性,电路图,材料清单和PCB设计图。
The MAX22191 is an IEC 61131-2 compliant, industrial digital input (DI) device that translates a 24V digital industrial input to a 2.4mA (typ) current for driving optical isolators. Voltage thresholds and current levels in the MAX22191 are compliant with Type 1 and Type 3 inputs, while minimizing power dissipation. The MAX22191 is also compliant with 48V inputs, with the addition of external resistors.
Operating power is derived from the input signal, eliminating the need for an external field-side power supply. A 250ns (max) fast response time is ideal for high-speed inputs. Additionally, a CMOS-compatible test input is available for safety diagnostics.
The MAX22191 features robust functionality for harsh industrial systems and is capable of normal operation with input signals ranging from -60V to +60V. Integrated thermal shutdown further protects the device when VCC is present.
The MAX22191 is available in a small, 6-lead SOT23 package and operates over the -40℃ to +125℃ ambient temperature range.
MAX22191主要优势和特性:
High Integration for Flexible Circuit Designs 250ns (max) Response Time
Parasitically Powered from the Field Input
Current Sourcing Input with Optical Isolators
Current Sinking Input with Optical Isolators
Current Sinking Input with Logic Devices
Test Pulse Input
Reduced Power and Heat Dissipation Current Limited Input
Robust Design Operates from -60V to +60V Input Voltage
-40℃ to +125℃ Ambient Operating Temperature
MAX22191应用:
Process Automation
Industrial Automation
Motor Controls
Individually Isolated Inputs
Current Sourcing Inputs
图1.MAX22191简化框图
图2.MAX22191典型工作电路图
图3.MAX22191工作电路图(1)
图4.MAX22191工作电路图(2)
图5.MAX22191工作电路图(3)
评估板MAX22191PMB#
The MAX22191PMB# peripheral module provides the hardware to evaluate the MAX22191 parasitically powered digital input. Refer to the MAX22191 IC data sheet for detailed information regarding operation of the IC. The PMB features two circuits: one for isolated parasitically powered circuit (using an optoisolator) and one for a 24V input signal with the circuit powered from a low-voltage logic supply.
The module can be used in various ways. Maxim sells low-cost USB2PMB1#, USB2PMB2#, and USB2GPIO# adapter boards that use the Munich GUI software for communication through a USB cable. This is not included with this board. Alternatively, any microcontroller or FPGA with a 12-pin Pmod™-compatible connector can be used. Another option for the user is to wire-wrap a temporary connection from their system to the pins on connector X1. For these later two options the user needs to write their own control software.
The Pmod PCB dimension is just 42mm long x 20mm wide, with the width determined by the size of the X1 connector.
评估板MAX22191PMB#主要特性:
Easy Evaluation of the MAX22191
Isolated, Paristically Powered and Logic-Powered Circuits for Easy Evaluation
Proven PCB Layout
Works with USB2PMB2# or USB2GPIO# Adapter and Munich GUI Software
图6.评估板MAX22191PM#外形图
图7.评估板MAX22191PM#和USB2PMB2#适配器连接图

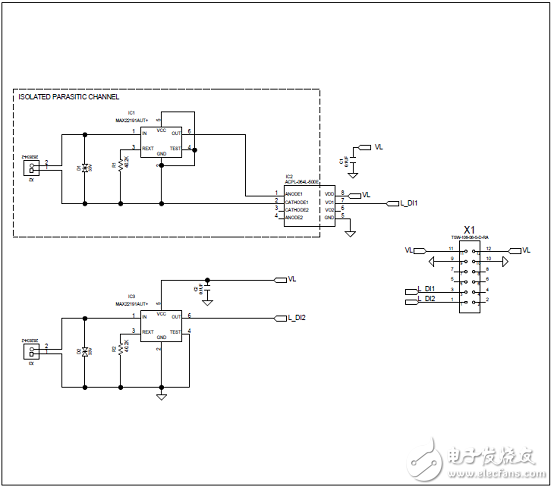

图8.评估板MAX22191PM# EVK电路图
评估板MAX22191PM# EVK材料清单:

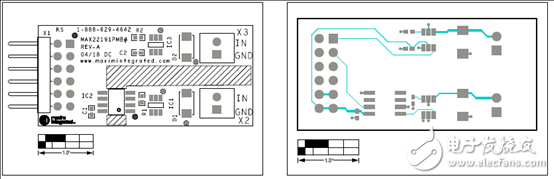

图9.评估板MAX22191PM# EVK PCB设计图:左:顶层丝印;右:顶层布局
图10.评估板MAX22191PM# EVK PCB设计图:底层布局
详情请见:
https://datasheets.maximintegrated.com/en/ds/MAX22191.pdf
和https://datasheets.maximintegrated.com/en/ds/MAX22191EVKIT.pdf
MAX22191.pdf
-
